Description
FEATURES
- Powered by AMD RDNA™ 4 architecture with DirectX® 12 Ultimate support
- Game Clock at 2700MHz, Boost Clock up to 3290MHz
- 2,048 Stream Processors and 32 Compute Units with 3rd Gen Ray Accelerators
- 16GB GDDR6 memory with 128-bit interface at 20Gbps
- Dual fan cooling with ultra-fit heatpipes and 0dB Silent Cooling mode
- Metal backplate with RGB LED indicator and manual LED On/Off switch
- PCIe 5.0 x16 interface for ultra-fast throughput
- AMD FidelityFX™ Super Resolution 4 and Smart Access Memory™ support
- Enhanced Media Engine for high-quality streaming and encoding
- Seamless pairing with AMD Ryzen™ 9000 Series processors and AM5 motherboards
SPECIFICATIONS
GPU & Architecture
- GPU Model: AMD Radeon™ RX 9060 XT
- Architecture: AMD RDNA™ 4
- Compute Units: 32 (3rd Gen Ray Tracing, 2nd Gen AI Accelerators)
- Stream Processors: 2,048
- API Support: DirectX® 12 Ultimate, OpenGL 4.6
- Interface: PCIe 5.0 x16
- Max Digital Resolution: 7680 x 4320 (8K)
Clock Speeds & Memory
- Game Clock: 2700MHz
- Boost Clock: Up to 3290MHz
- Memory Type: 16GB GDDR6
- Memory Interface: 128-bit
- Memory Clock: 20Gbps
Display Outputs
- Ports: 1 x HDMI™ 2.1b, 2 x DisplayPort™ 2.1a
- Multi-View Support: Up to 3 displays
- HDCP Support: Yes
Cooling & Thermals
- Cooling System: Dual Fan with Striped Axial Design
- Features:
- 0dB Silent Cooling
- Ultra-fit Heatpipes
- High-Density Metal Welding
- Nano Thermal Paste
- Premium Thermal Pads
- Precise Screw Torque Mounting
Design & Build

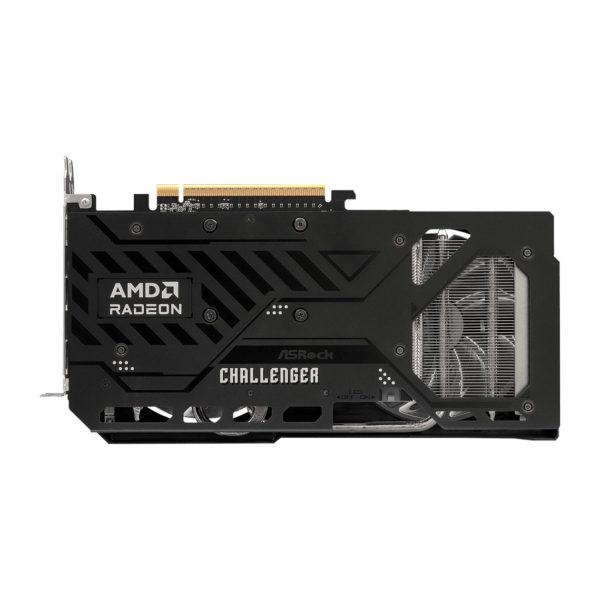

- Backplate: Metal with RGB Indicator
- RGB Control: Manual LED On/Off switch
- Dimensions: 24.9 x 13.2 x 4.1 cm
- Weight: 645g
Power Requirements
- Connector: 1 x 8-pin
- Recommended PSU: 550W
- Power Design:
- Dr.MOS Power Stage (50A)
- Premium 90A Power Choke
- 2oz Copper PCB
- High-Density Glass Fabric PCB
Software & Compatibility
- Software: AMD Adrenalin Edition
- AI-Driven Optimisation
- AMD HYPR-RX2 One-Click Tuning
- Technologies:
- FidelityFX™ Super Resolution 4
- Smart Access Memory™
- Radiance Display™ Engine
- Optimised For: 1440p Gaming with Ray Tracing
- Platform Compatibility: AMD Ryzen™ 9000 Series CPUs, AM5 Motherboards
WHAT’S IN THE BOX

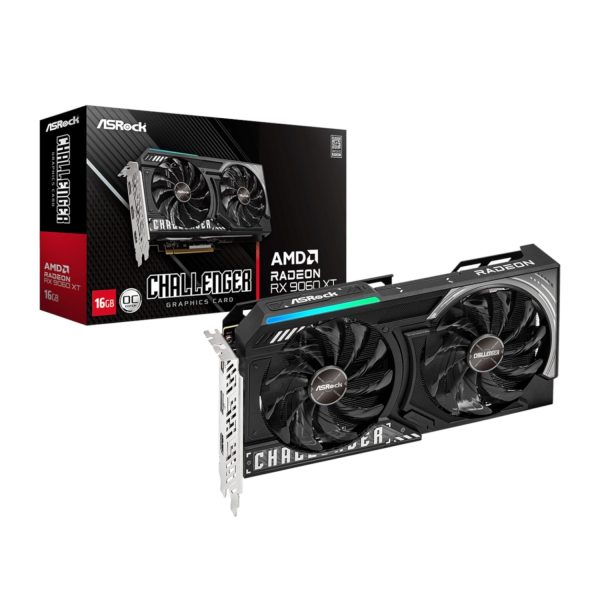

- ASRock Radeon™ RX 9060 XT Challenger 16GB OC Graphics Card ×1
- Installation Guide ×1
